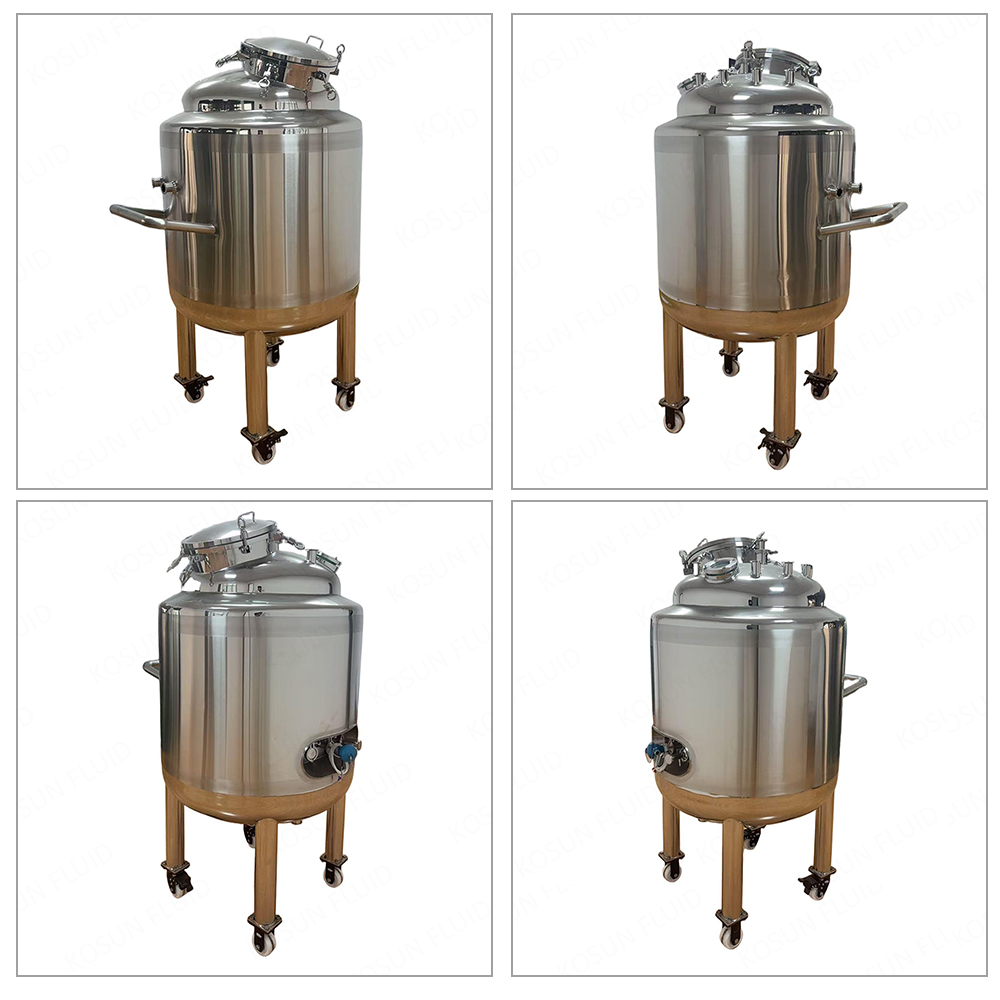

Stainless steel movable holding storage tank with wheels

Short Description:

Suitable for food grade application, like milk, juice, Soft Drink, syrup.


Product Detail

Product Tags

d3139aa4H837ad9d17a454194a7b7c8915f78decfo未标题-1

2Engineered for the most demanding hygiene standards, the Kosun Food Grade Movable Storage Tank delivers uncompromising purity,durability, and operational flexibility for the food and beverage industry. Constructed from high-purity stainless steel—with the tank body available in premium 304 or 316L grade—this vessel is specifically designed to store sensitive liquid products without risk of contamination or corrosion.
The true hallmark of this tank lies in its internal finish. Every interior surface undergoes a meticulous mirror polishing
process, achieving a surface roughness of Ra < 0.4μm (even finer than industry standard requirements). This ultra-smooth, non-porous finish eliminates microscopic crevices where bacteria could lodge, prevents product adhesion, and allows for effortless, rapid clean-in-place (CIP) cycles. It guarantees absolute product integrity for a wide range of consumables, including fresh milk, fruit juices, carbonated soft drinks, and high-viscosity syrups.
As its name implies, the Kosun storage tank is fully movable. It is integrated with a robust, heavy-duty caster system (including locking swivel casters) that allows operators to safely reposition the tank between filling, processing, and packaging stations.
This mobility eliminates the need for fixed piping in many applications, dramatically increasing production line flexibility and reducing cross-contamination risks from permanent lines.
Whether you require the standard economy of 304 stainless or the superior corrosion resistance of 316L for acidic or saline products, Kosun delivers a reliable, regulatory-ready solution. Ideal for dairies, juice bars, beverage plants, and syrup rooms, this movable tank combines world-class hygienic engineering with practical, floor-level agility.

未标题-1

Tank Data sheet
Tank Volume
From 50L upto 10000L
Material
304 or 316 Stainless steel
Insulation
Single layer or with insulation
Top Head type
Dish top, Open lid top, Flat top
Bottom type
Dish bottom, Conical bottom, Flat bottom
Agitator type
impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper
magnetic mixer, Anchor mixer with scraper
Inside Finsh
Mirror polished Ra<0.4um
Outside Finish
2B or Satin Finish
Application
Food, Beverage,biological
honey, chocolate, alcohol etc
